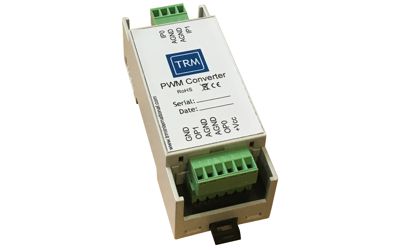

PWM to analogue converter
Designed to covert PWM to analogue where the frequency is not critical, the device has two channels one converts 0 to 10 volts and the other provides +/- 10 volts. These products are ideal for use with spindle drives etc. They operate from 24 volts with a wide tolerance range.
PWM to analogue converter Data sheet
Analogue multiplexer
Analogue multiplexers are used to switch analogue signals, this device is used to multiplex 8 analogue signals into 1 output signal. There are 3 TTL inputs to select the required input, the signals are switched faster then 1us and the signal range is 0 to 4 volts. The supply voltage is 7 to 32 volts DC
Motion control enable signal isolator
Designed to make it easy to control drives with different enable voltages off a single device. Each of the four inputs can be controlled on an individual basis or globally controlled via the global enable signal. All of the outputs are volts free and all isolated from each other and the inputs.
Ir Transmitter/Detector module
This product is designed to facilitate an IR Transmitter/Detector system where on one side there is a transmitter and the other there is a detector. The device is immune to sunlight and can be offered with custom IR transmitters and detectors.
Two wire to three wire sensor converter
Some proximity switches have only two wires and they can be difficult to interface to controllers. This device is the solution designed to interface with two wire loop powered sensors and it converts them to 3 wire.
Motor Brake controller
Sometimes motors need to be fitted with a brake and this can be difficult to control, this device can be used to release the brake on enable or allow control via a TTL signal.
Splash proof encoder
Coolant and other liquids are a real menace for encoders, this is a perfect solution, the device uses a Renishaw magnetic encoder and is completely sealed. This when mounted on the back of a motor can prevent liquid ingress, it is also suitable for use where there may be gas ingress. These encoders are made to order and can be made to exact requirements. The device is immune to sunlight and can be offered with custom IR transmitters and detectors.
Breakout cards
Breakout cards make it quick and easy to implement a system and are used in electrical boxes to connect the controller etc. TRM are able to manufacture custom break out cards for any make of controller or types of connectors.
Magnetic Linear Encoders
Working with our partner company Renishaw, enables us to supply innovative Linear encoder products

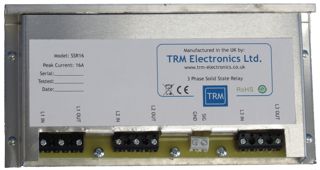

3 Phase Solid State Relays
Three Phase solid state relays are expensive, and often require other devices to protect them. TRM have been making solid State Relays for more than 10 years, the advantage of this service is that these devices are ready to use, complete with heat-sink. Multiple devices can be implemented on the same board reducing wiring and reducing costs.

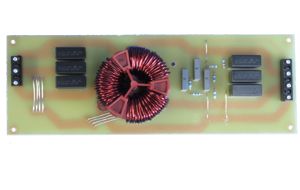

3 Phase Mains EMC Filters
Three phase filters can be expensive, but TRM is able to manufacture cost effective EMC filters for single or 3 phase applications. The filter shown is an open frame type, however fully enclosed as well as custom filter modules are available. The filter shown above is a special purpose 16 amps per phase filter for a machine.
Safety light curtains and safety products from Smartscan
1000 Series light curtains
1000 Plus series safety light curtains are designed for low to medium risk applications, ISO 13849-1 PL d control equipment. Typical applications might include, general purpose machines and packaging machines.
8000 Series light curtains
8000 Plus series safety light curtains are designed for medium risk applications, ISO 13849-1 PL d control equipment. Typical applications might include, palletisers and de-palletisers, stretch wrapping machinery, pallet strapping machinery and automated warehouses.
T4 Series light curtains
T4 series safety light curtains are designed for high risk applications, ISO 13849-1 PL e control equipment. Typical applications might include, presses, press brakes, metal folding machines and guillotines.
M Series light curtains
M series non-safety light curtains are designed for process control and non-safety machine protection where physical space is at a premium. Typical applications might include, parts detection and counting.
N Series light curtains
N series non-safety light curtains are designed for process control and non-safety machine protection. Typical applications might include, parts detection and counting.
Safety relay
The 011-160 Multifunction Safety relay from Smartscan provides a versatile and cost effective safety relay output option for connecting machine safety products, such as light guards etc. Safety relays form an integral part of the safety systems of machine safety as defined in the machinery safety directive
Safety relay RY4
The RY4 Series provides a range of dedicated safety relay output units for the T4 series safety light curtain. They have been designed to simplify connection and help reduce installation time and costs. Options for 2 N/O and 3 N/O safety contacts are available plus an innovative RJ45 connection option with the RY4C unit.
Analogue Converters & Multiplexers,Enable signal isolator,filters & SSR
A range of products that making it easy to implement an automation/motion control applications. Most of these products are designed and manufactured by TRM or our partner companies. We are able to make custom ancillary devices, please feel free to contact us.
